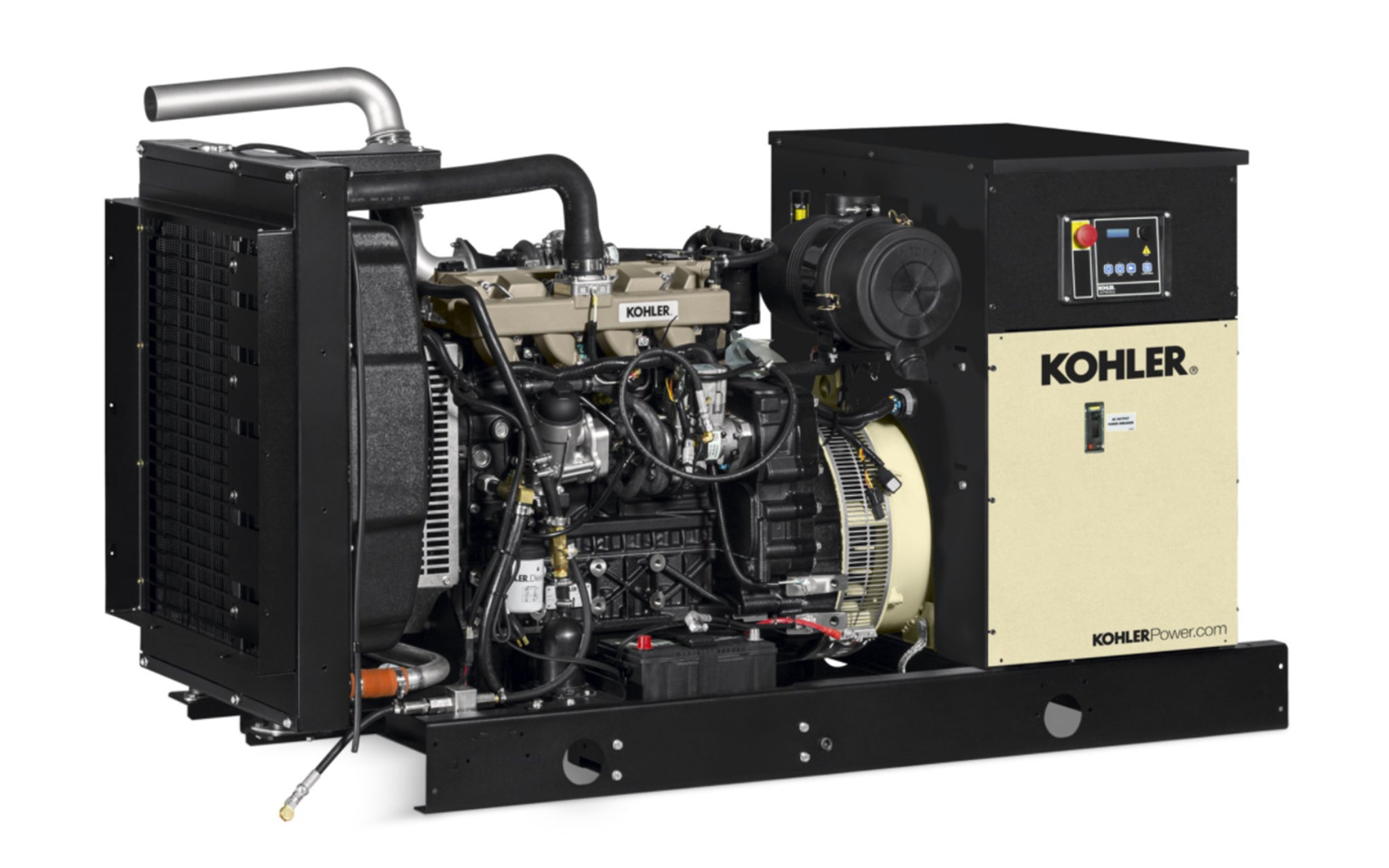

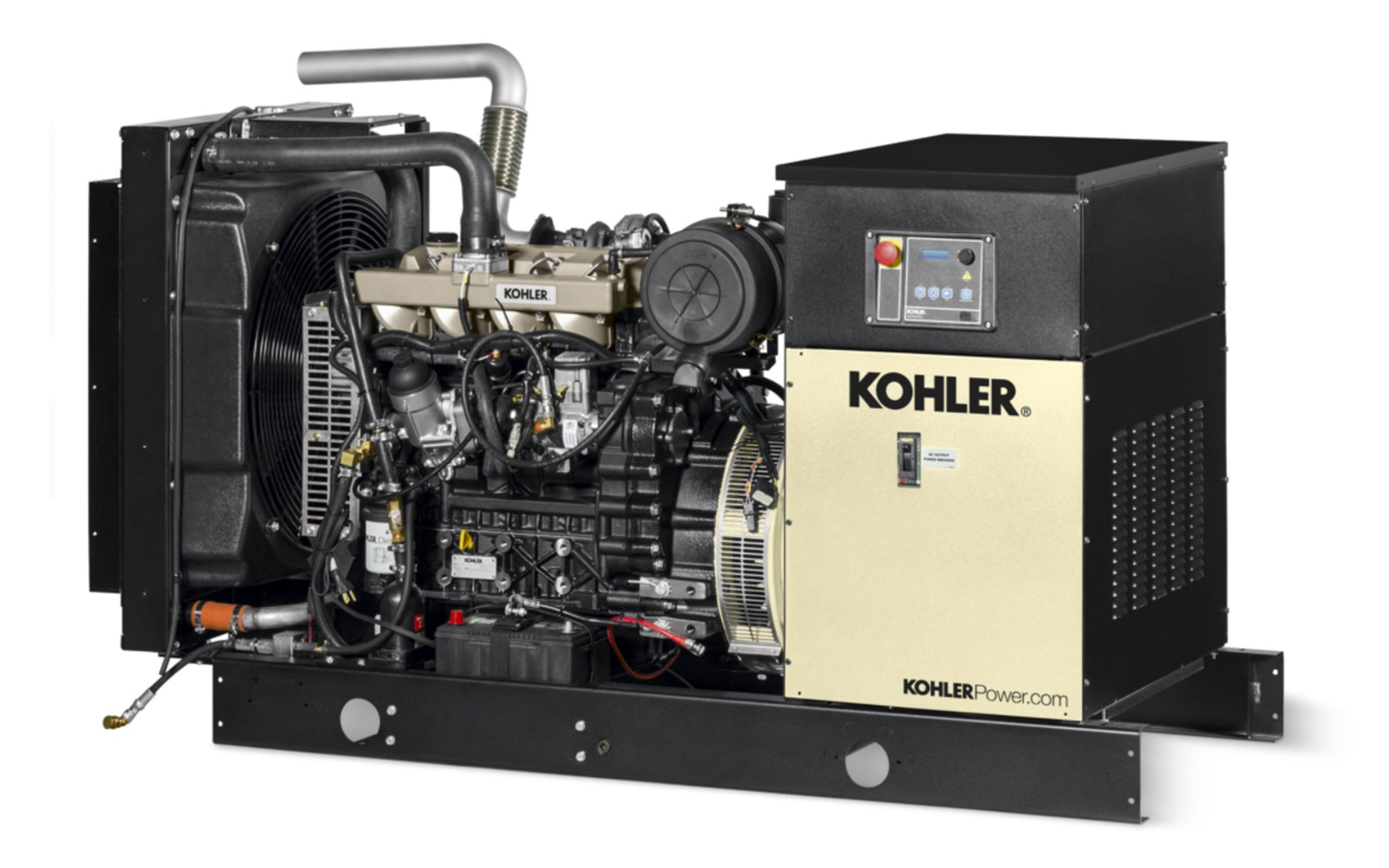

50REOZK

Make: Kohler
Model: 50REOZK
Enclosure: Sound Enclosure
Tank: None
ETA: Available
Serial Number: 33H3GMLM0003
Fuel Type: Diesel
Certification: US EPA (Certified) Stationary Emergency
Standby Range (kW/kVA): 44-52/44-65
Prime Range (kW/kVA): 40-47/40-58
Frequency: 60 Hz
Speed: 1800 RPM
Alternator Type: 4-Pole, Rotating-Field
Engine Manufacturer: Kohler

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set offers a UL 2200 listing
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
  • A one-year limited warranty covers all systems and components. Two- and five-year extended warranties are also available
  • The generator set complies with Environmental Protection Agency (EPA) emergency stationary emissions requirements

OTHER FEATURES

  • Kohler designed controllers for guaranteed system integration and remote communication
  • The low coolant level shutdown prevents overheating (standard on radiator models only)
  • Integral vibration isolation eliminates the need for under-unit vibration spring isolators
  • Durable weather, sound, and hurricane-rated enclosures available; 186 mph wind load rating on sound aluminum enclosure
  • Various sizes of UL 142 listed subbase fuel tanks available
  • Multiple circuit breaker configurations available

ALTERNATOR FEATURES

  • The pilot-excited, permanent-magnet (PM) alternator provides superior short-circuit capability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and dripproof construction
  • Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
  • Superior voltage waveform from a two-thirds pitch stator and skewed rotor
